EBMPAPST W2D250-HH14-09 – AC Axial Fan, 400~460VAC, 280x280x80mm

Description

1. Fan specification details

• Type: W2D250-HH14-09
• Motor: M2D068-CC
• Nominal voltage: 400/460VAC
• Phase: 3~
• Frequency: 50/60Hz
• Current: 0.21/0.25A
• Power: 125/190W
• Speed: 2300/2500RPM
• Airflow: 1825/2050m3/h
• Material of wall ring: Die-cast aluminium
• Material of blades: Sheet steel, coated in black
• Direction of air flow: “V”
• IP Rating: IP44
• Frame Size: 280x280x80mm
• Impeller diameter: 250mm
• Origin: Germany

2. Contact

Sales Hotline/WhatsApp: +84.966.112.712

Mail: [email protected]

3. Fan Review

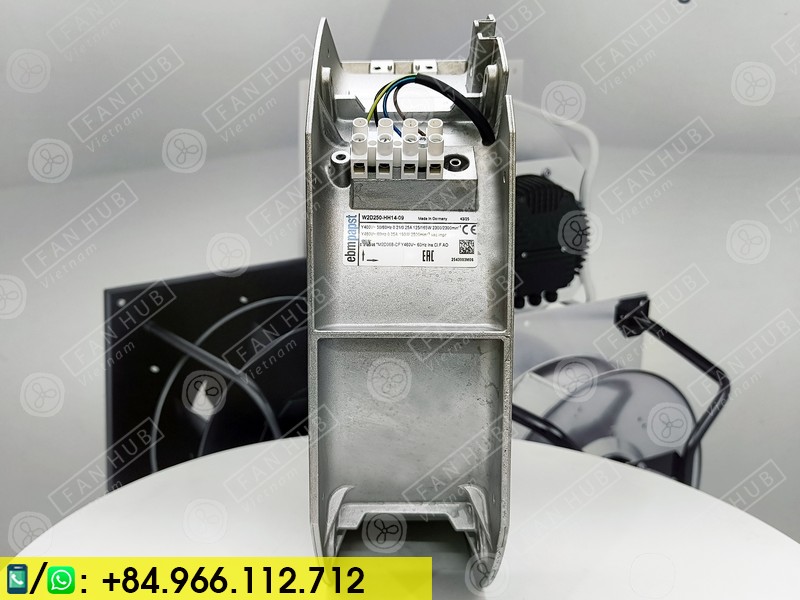

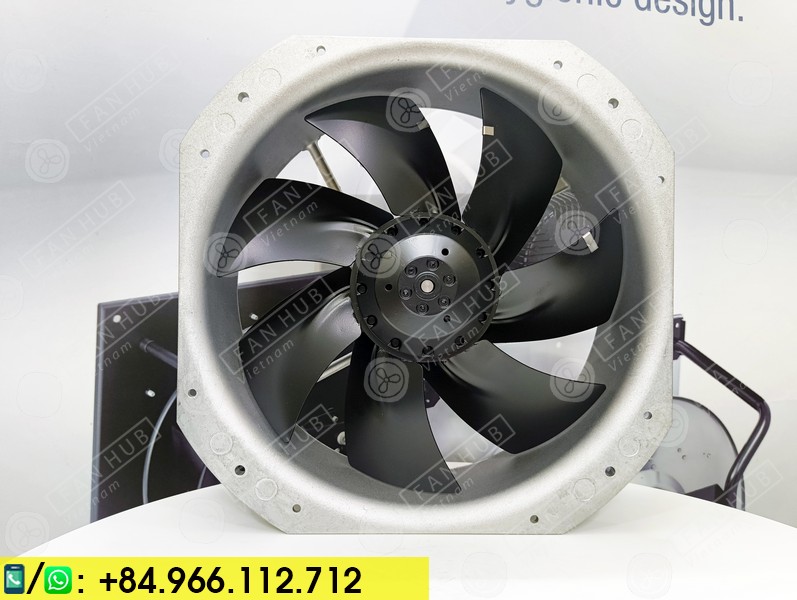

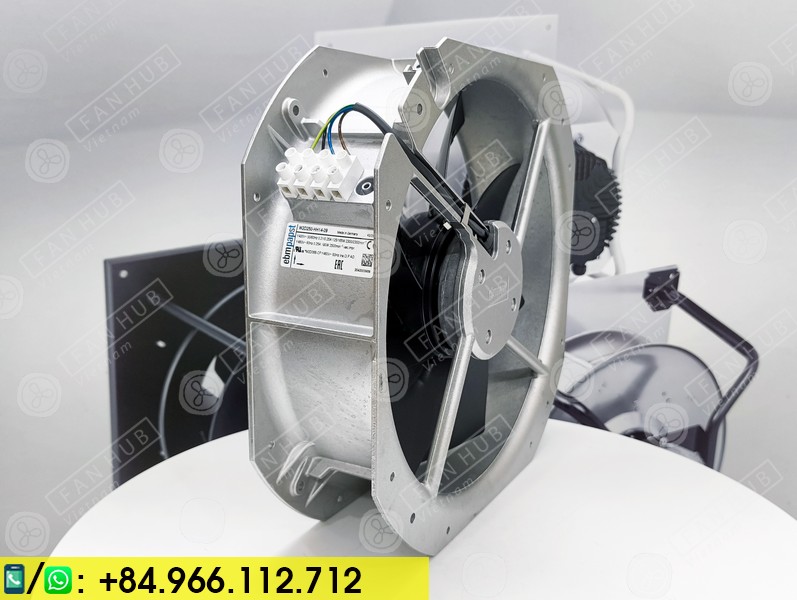

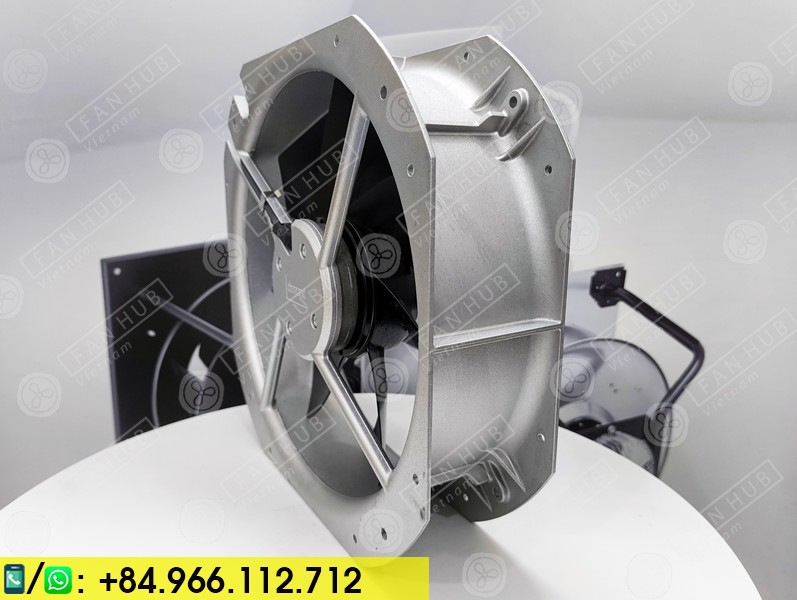

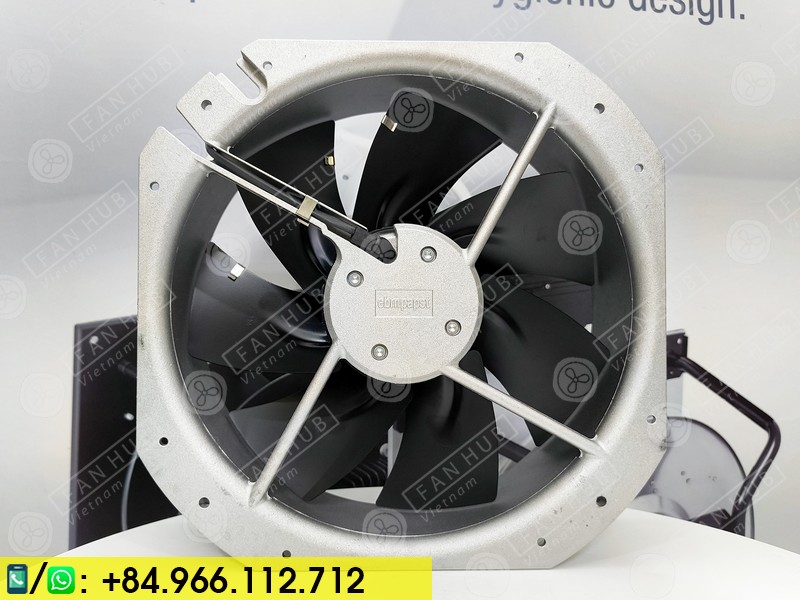

4. Photo details of cooling fan EBMPAPST W2D250-HH14-09
