EBMPAPST W3G800-GY21-63 – EC Axial Fan, 3 Phase, 380~480VAC, 800mm

Description

1. Fan specification details

• Model: W3G800-GY21-63
• Motor: M3G150-IF
• Phase: 3~
• Nominal voltage: 400VAC
• Nominal voltage range: 380 .. 480VAC
• Frequency: 50/60Hz
• Current: 3.7A
• Power: 2400W
• Speed: 1130RPM
• Airflow: 25185m³/h
• Static Pressure: 260Pa
• IP Rating: IP55
• Size: Φ800mm
• Airflow direction: “V”
• Origin: China

2. Contact

Sales Hotline/WhatsApp: +84.966.112.712

Mail: [email protected]

3. Fan Review

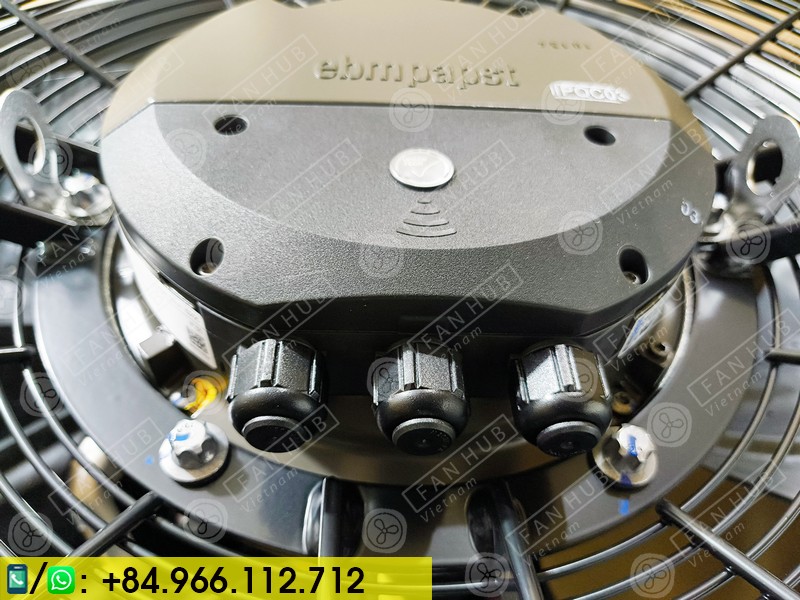

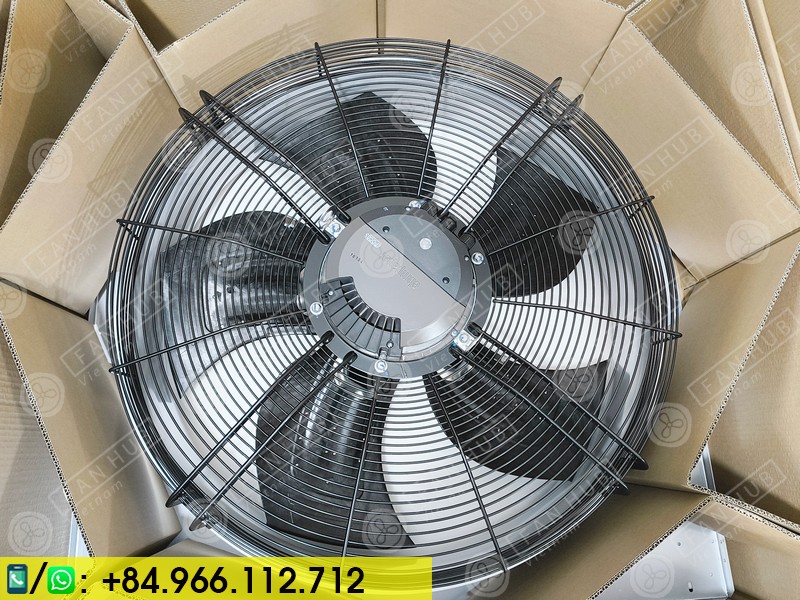

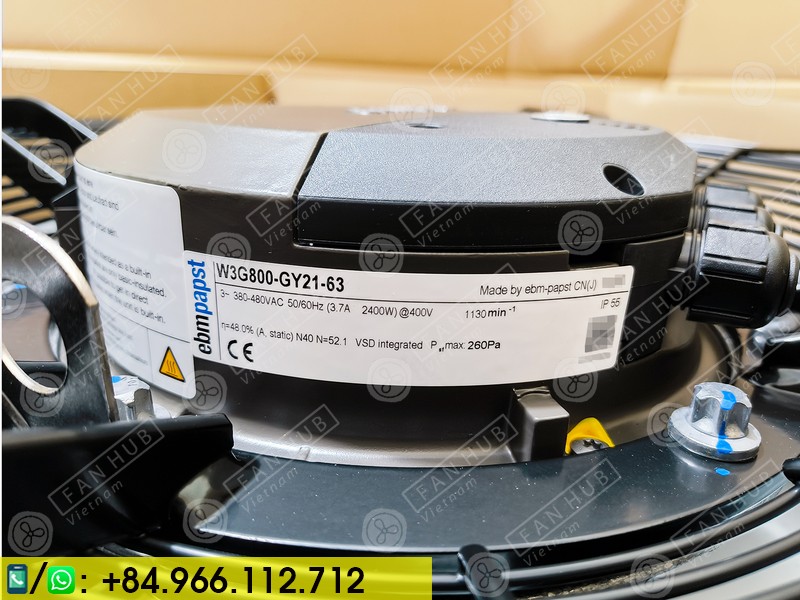

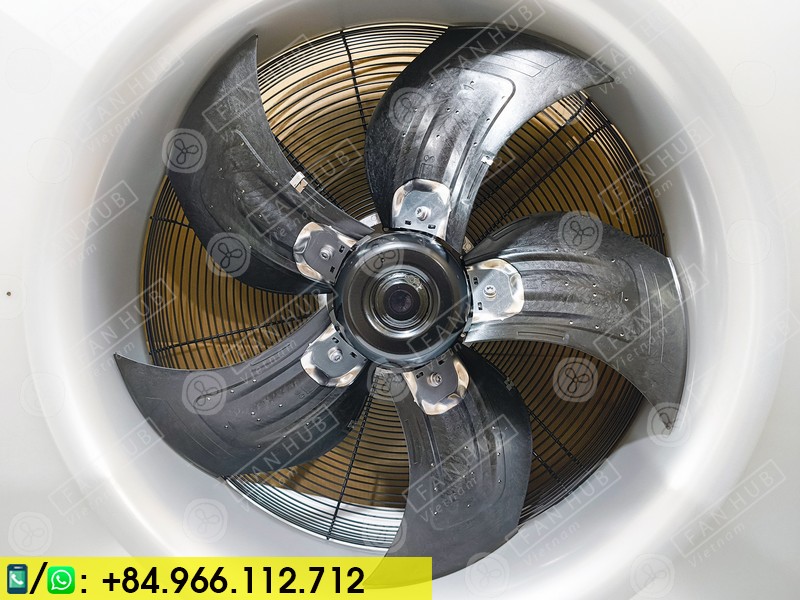

4. Photo details of EC Axial Fan EBMPAPST W3G800-GY21-63
