Signal Generator with battery, ±12V/0-24mA

Description

1. Fan specification details

• External power supply DC15-30V power 1w (not charging)/4W(charging);
• 3.7V lithium battery capacity 1100mAh, maximum charging current 0.6A(optional);
• External microUSB-5V current 0.2A (not charging)/0.8A (charging)
• The voltage output is adjustable from ±12V, the accuracy after calibrationis 0.05V, and the maximum current is 20mA;
• The current output is adjustable from O-24mA, the accuracy after
  calibration is 0.05mA,The current sampling resistance is not more than500ohms;
• The digital tube displays 4 digits, two decimal places;
• Encoder knob 1 circle: 30 pulses;

2. Contact

Sales Hotline/WhatsApp: +84.966.112.712

Mail: [email protected]

3. Fan Review

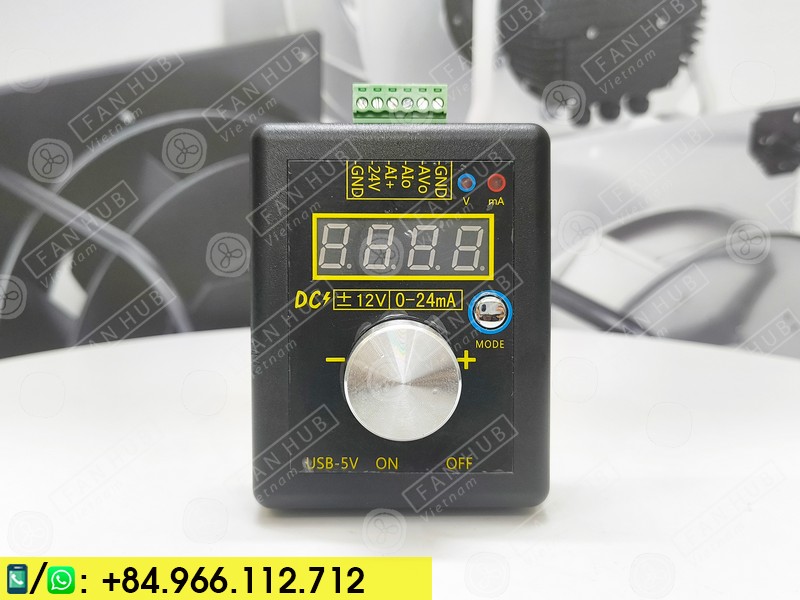

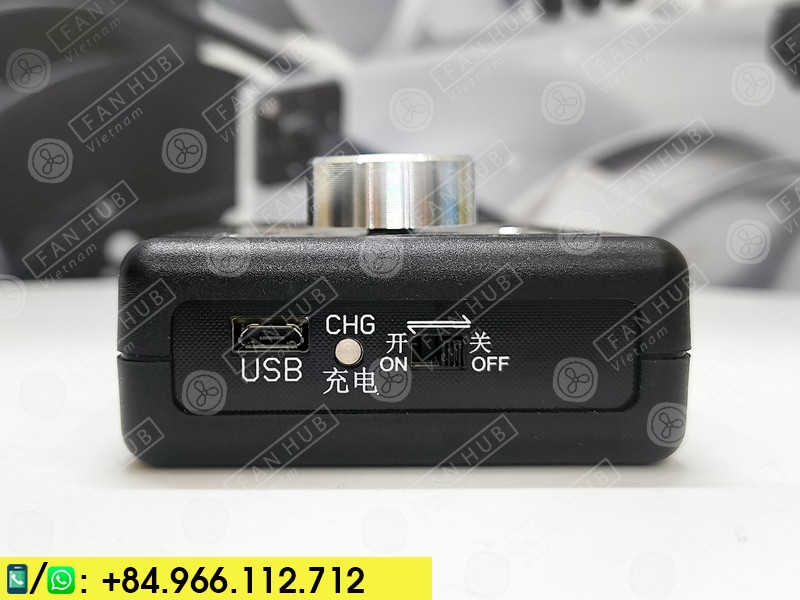

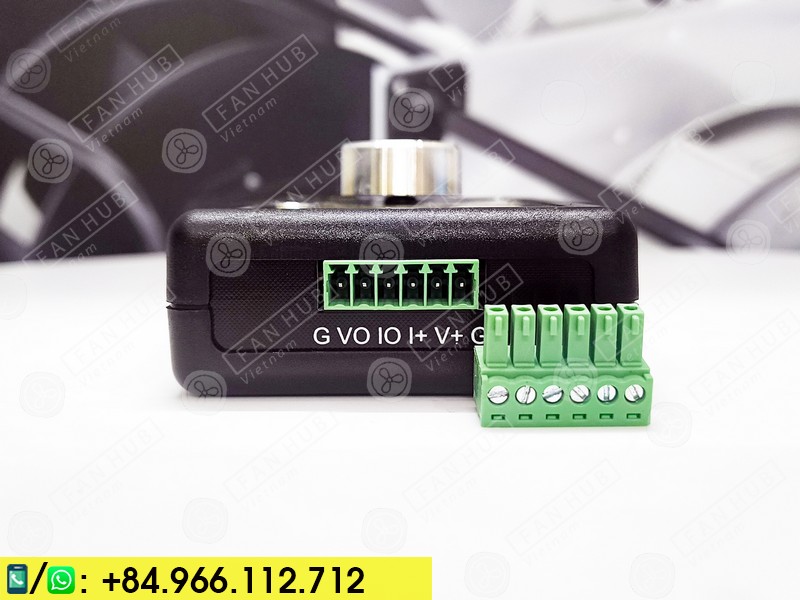

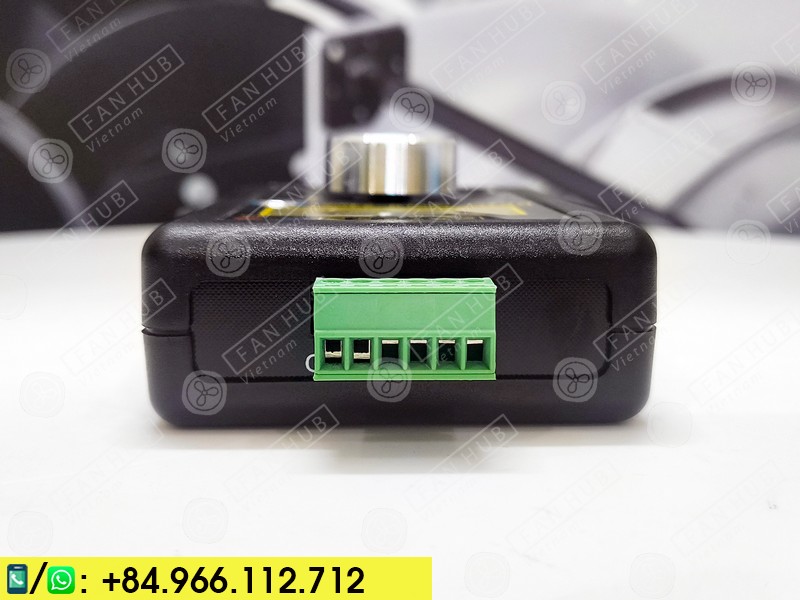

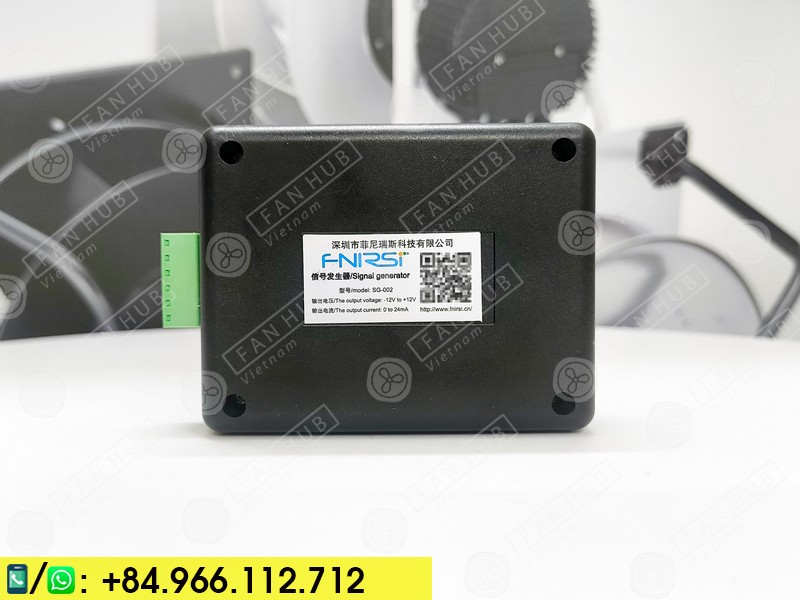

4. Photo details of Signal Generator with battery
