EBMPAPST A3G450-BL03-H1 – EC Axial Fan, 230VAC, 450mm

Description

1. Fan specification details

• Type: A3G450-BL03-H1
• Motor: M3G084-FA
• Phase: 1~
• Nominal voltage: 230VAC
• Nominal voltage range: 200 .. 277VAC
• Frequency: 50/60Hz
• Current: 2.2A
• Power: 500W
• Speed: 1500RPM
• Airflow: 7355 m³/h(50Hz)
• Static Pressure: 150Pa
• Noise: 74dBA
• IP Rating: IP55
• Size: Φ450mm
• Blade material: Press-fitted sheet steel blank, sprayed with PP plastic
• Electronics housing material: Die-cast aluminum, painted black
• Termination: Wire Leads
• Airflow direction: “V”
• Origin: Germany

2. Contact

Sales Hotline/WhatsApp: +84.966.112.712

Mail: [email protected]

3. Fan Review

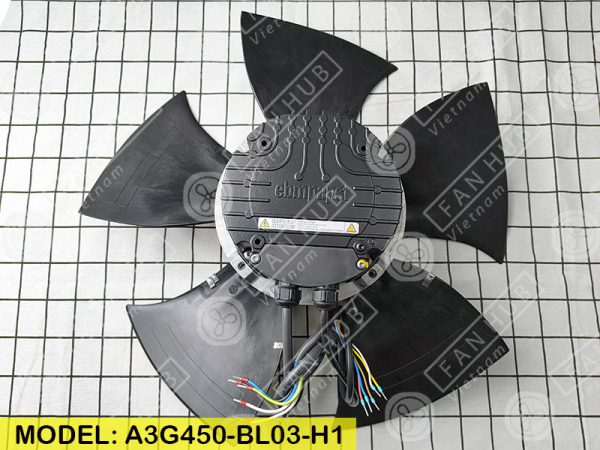

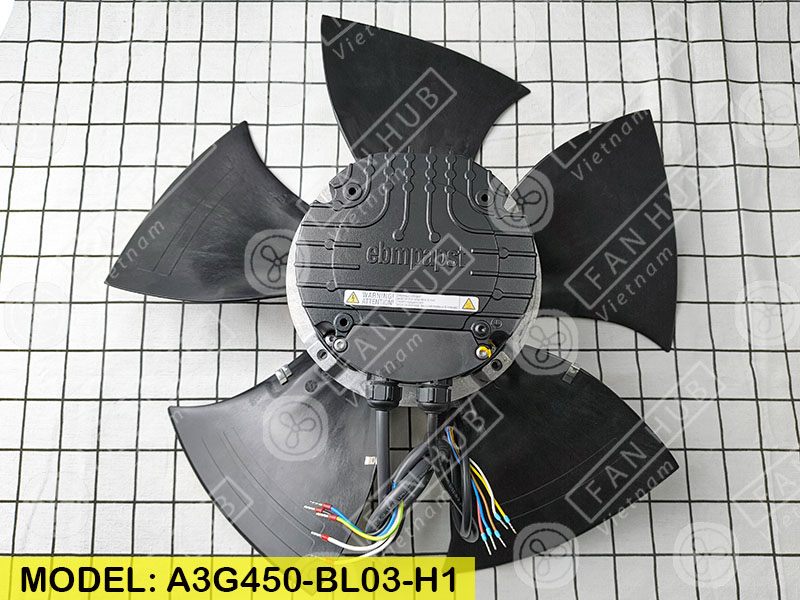

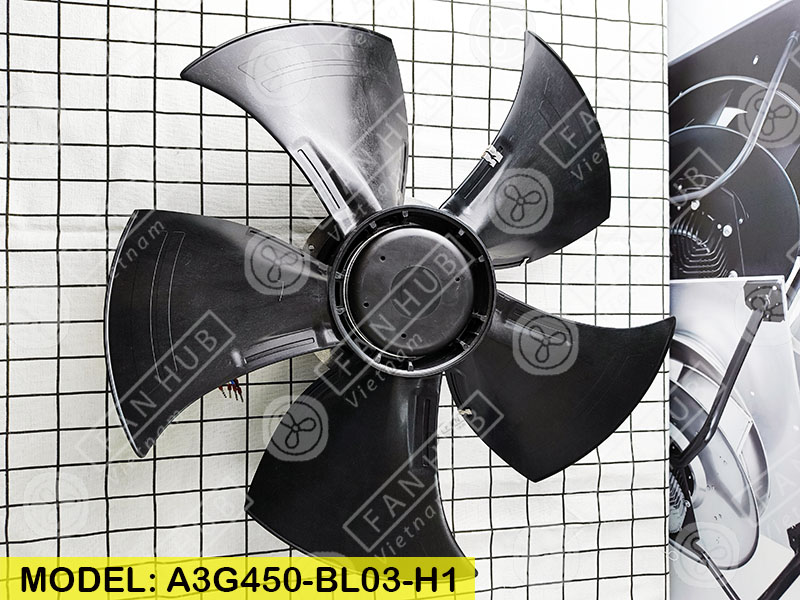

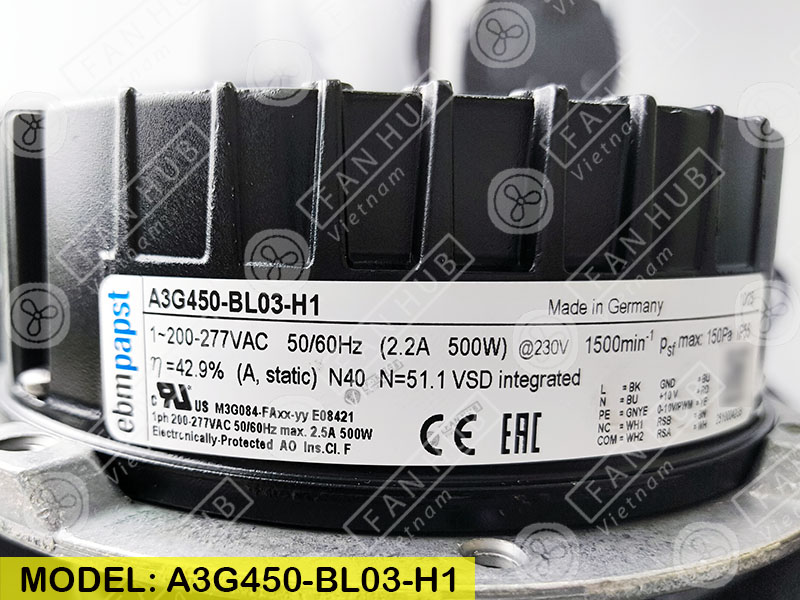

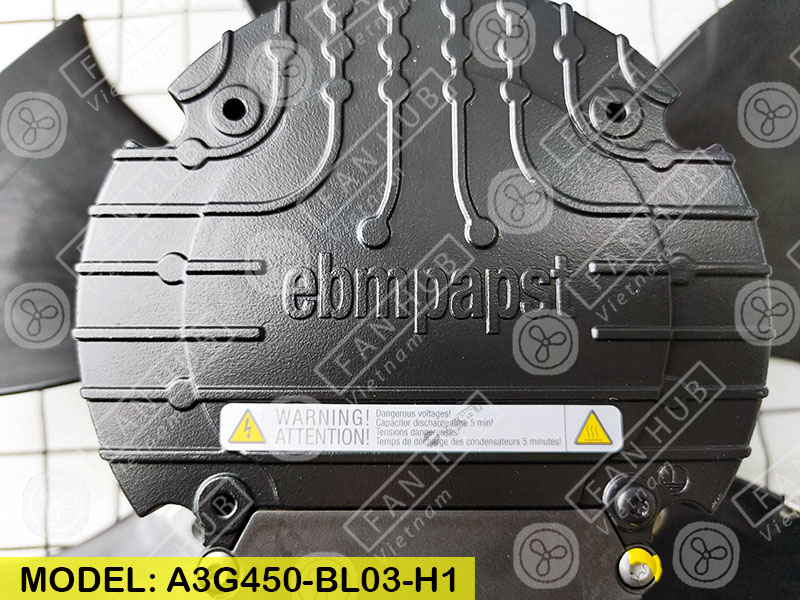

4. Photo details of EC Axial Fan EBMPAPST A3G450-BL03-H1
