EBMPAPST A6D800-AD01-01 – AC Axial Fan, 400VAC, 800mm

Description

1. Fan specification details

• Type: A6D800-AD01-01
• Motor: M6D138-LA
• Phase: 3~
• Nominal voltage: 400VAC
• Frequency: 50Hz
• Current: 3.9/2.23A
• Power: 1940/1210W
• Speed: 885/685RPM
• Airflow: 24110m3/h
• IP Rating: IP54
• Static Pressure: 160/92Pa

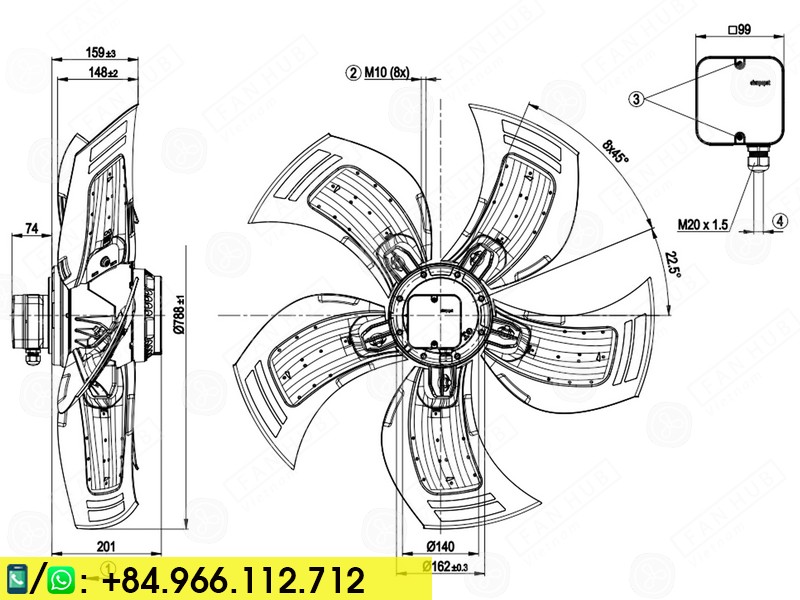

• Size: Φ800mm
• Direction of air flow: “V”
• Origin: China

2. Contact

Sales Hotline/WhatsApp: +84.966.112.712

Mail: [email protected]

3. Fan Review

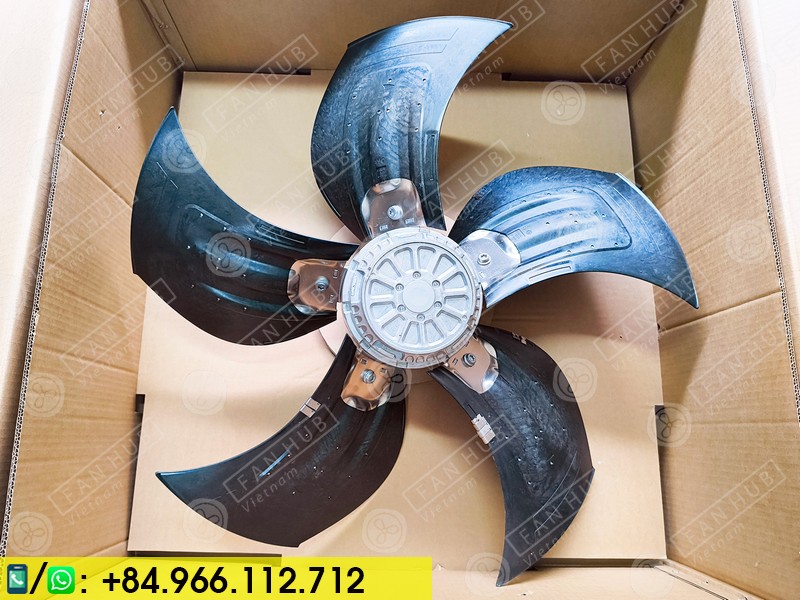

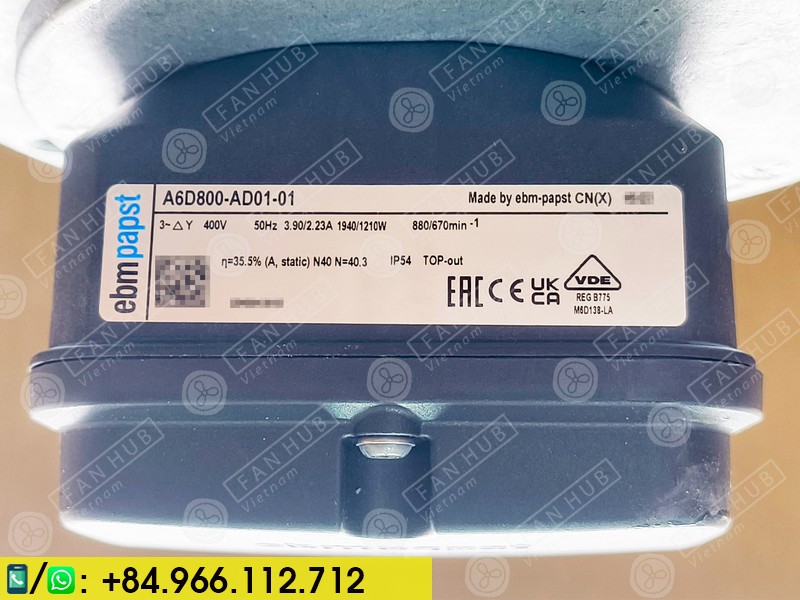

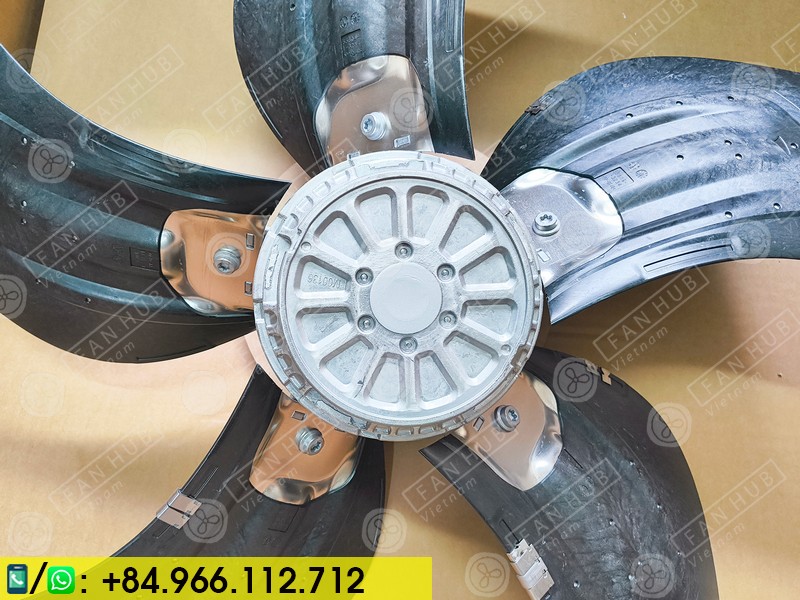

4. Photo details of AC Axial Fan EBMPAPST A6D800-AD01-01
