EBMPAPST W3G710-GG98-01 – EC Axial Fan, 3 Phase, 380~480VAC, 710mm

Description

1. Fan specification details

• Fan model: W3G710-GG98-01
• Motor: M3G112-IA
• Rated voltage: 400VAC
• Voltage range: 380–480VAC
• Phase: 3-phase
• Frequency: 50/60Hz
• Current: 1.9A
• Power: 1200W
• Speed: 1010 RPM
• Airflow: 12,310 m³/h (max. 17,485 m³/h)
• Static pressure: 130 Pa
• IP rating: IP55
• Blade diameter: Ø710mm
• Airflow direction: Suction (“V”)
• Origin: Germany

2. Contact

Sales Hotline/WhatsApp: +84.966.112.712

Mail: [email protected]

3. Fan Review

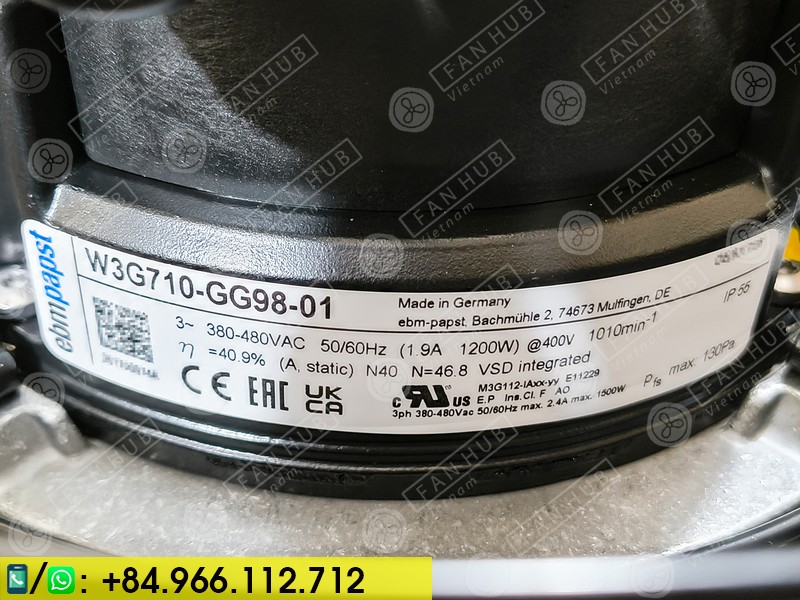

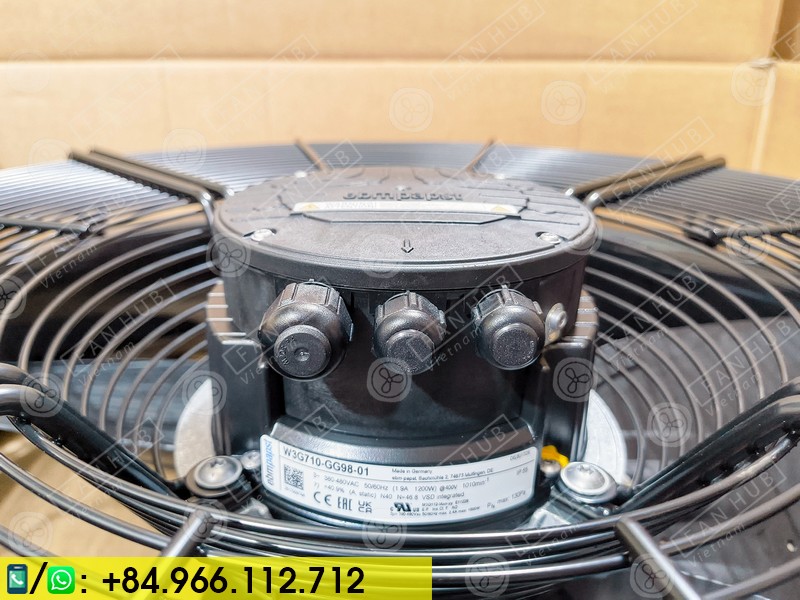

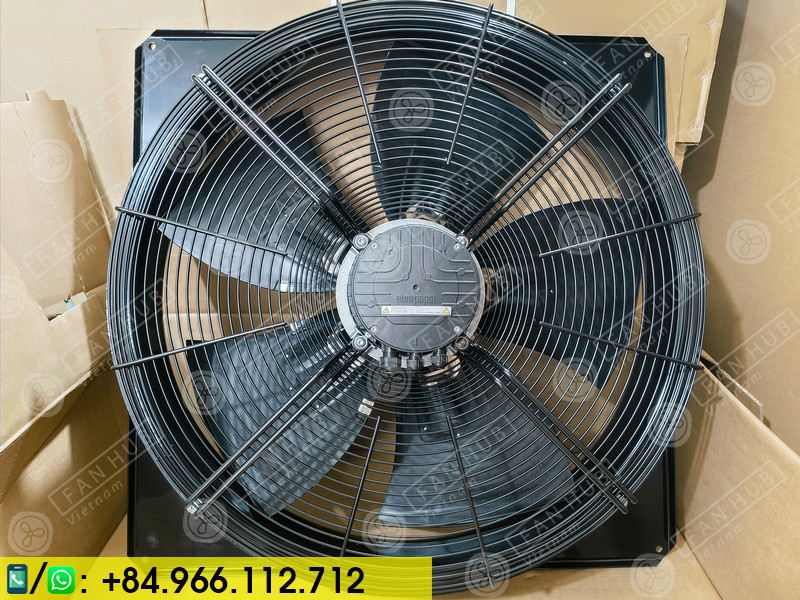

4. Photo details of EC Axial Fan EBMPAPST W3G710-GG98-01
