EC FAN EBMPAPST K3G400-PI92-05 – Fan For AHU, 3 Phase, 380~480VAC, 1250Pa, 10020m³/h

Description

1. Fan specification details

• Model: K3G400-PI92-05
• Phase: 3~
• Nominal voltage: 400VAC
• Nominal voltage range: 380~480VAC
• Frequency: 50/60Hz
• Power: 2500W
• Current: 3.8A
• Speed: 2450 RPM
• Airflow: 5690m³/h(Max 10020m³/h)
• Static Pressure: 1000Pa(Max 2100Pa)
• IP Rating: IP54
• Size: Φ400mm
• Impeller Material: Sheet Aluminum
• Origin: Germany

2. Contact

Sales Hotline/WhatsApp: +84.966.112.712

Mail: [email protected]

3. Fan Review

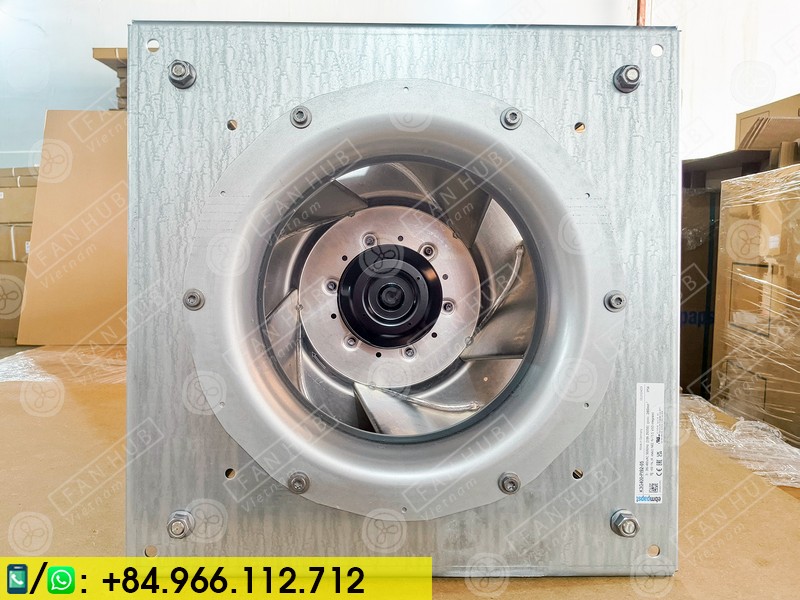

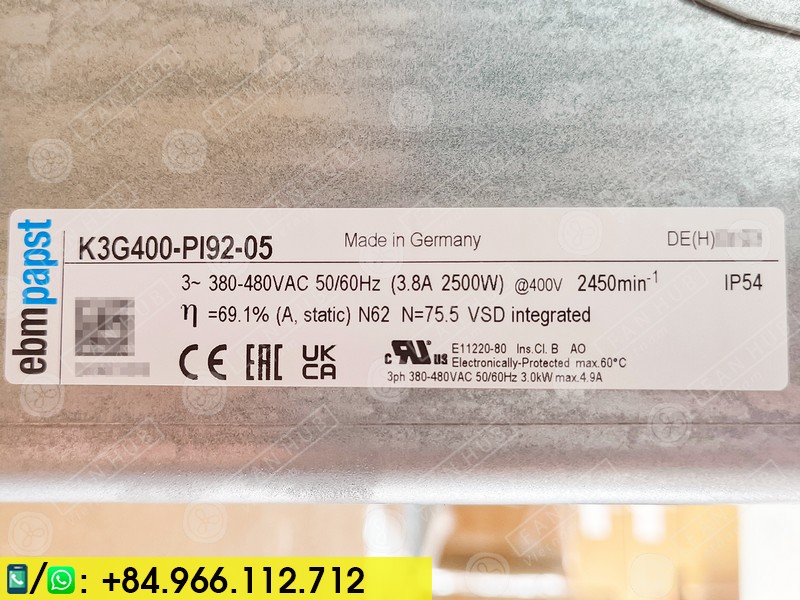

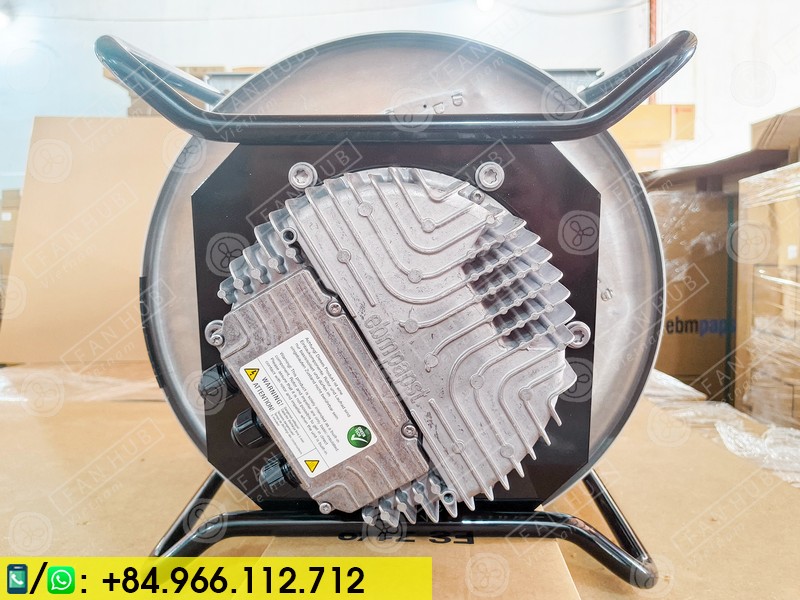

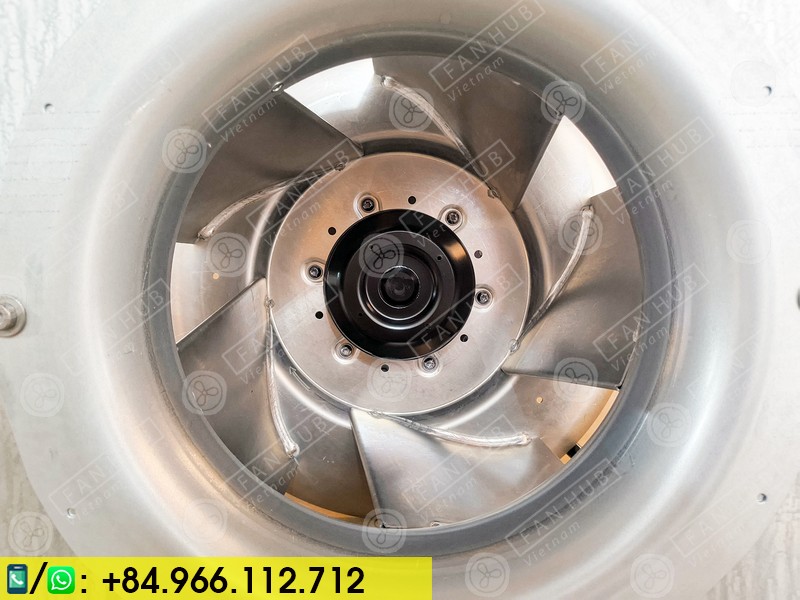

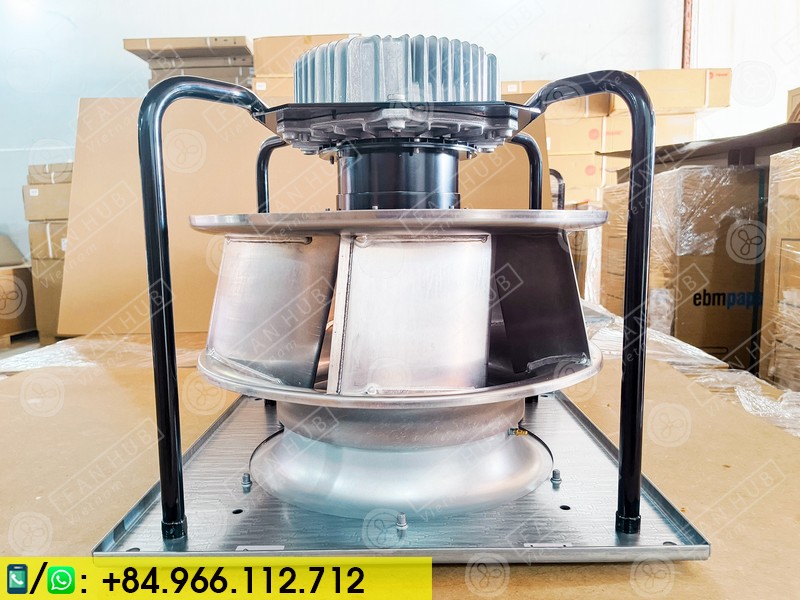

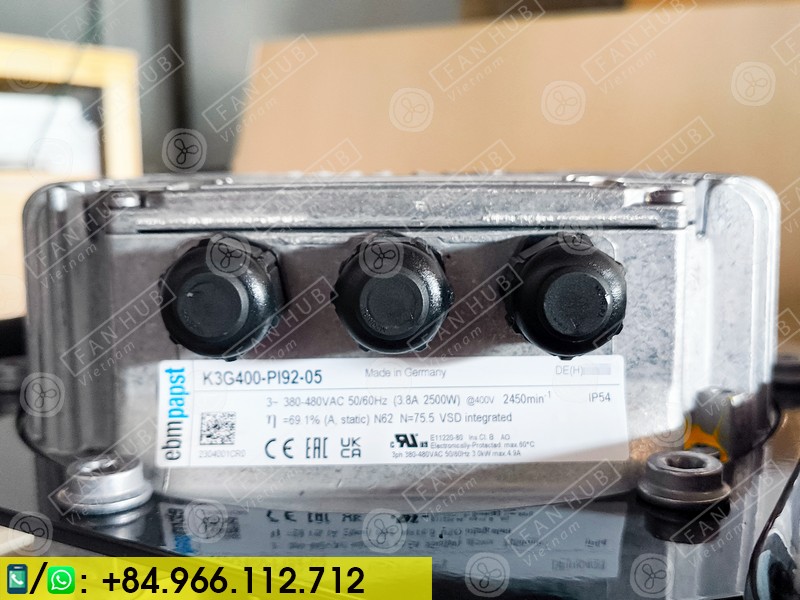

4. Photo details of EC fan for AHU EBMPAPST K3G400-PI92-05
